Equipments
Main Components Vendor List
Important Components brand Information
Process Line Equipments
All Plastic Belts (Food Grade Approved) | Denmark/Holland |
Stainless Steel Belts for Fryer & Blancher | Holland |
All Shaker Imbalance Motors Shaker Links | USA Switzerland |
Slicer | Urschel , USA/FAM , Belgium |
Bearings | NTN , Japan |
Hot Oil Pump | Brand KSB , Germany |
Packaging Section
Elevator Belts | Holland/USA |
Multihead Weighers | Yamato/Japan |
Bagmakers | Winners, India |
Electricals
Motors & Gearboxes | Bonfiglioli, Italy |
All Electrical Switchgear | Europe brands |
Destoner
The machine is used to remove the Dirt & Stones on the farm picked potatoes and to elevate the same to the peeler. The turbulence of water removes the adhered sand particles and also the stones. The screw feeder, driven by a constant speed motor carries the potatoes into the peeler. The unit incorporates trap doors, which can be used for cleaning after the production. Certain amount of washing is achieved to assist better peeling. Capacity to match the process line.

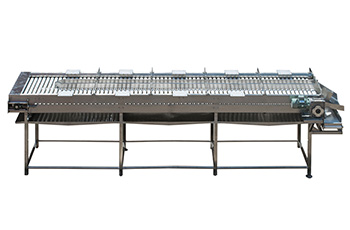

Roller Inspection Conveyor
Peeled potatoes to be inspected on a Roller Inspection conveyor. This will facilitate full view of each Potato since rollers turn the potato full 360 degrees, which is not done on a flat plastic belt. The equipment also provides for Trim stations mounted on either side of table to facilitate trimming and disposal through waste chute or with option of waste conveyors on both sides.

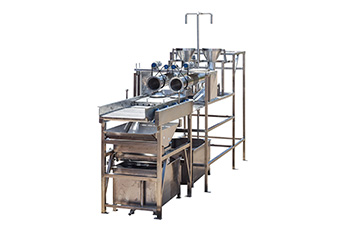

Slice Washer Tumbler & Shaker
Specially designed tumbler washer, which effectively removes surface starch from freshly sliced potatoes and separates small pieces. Double washing of raw slices is extremely effective in Tumbler and thereafter on Shaker. Water Recycling is done for low water consumption.
Tumbler Washer
Exclusively designed twin tube tumbler washer, to receive Slices from the Slicer and carry it in water to the shaker. It achieves optimum washing of potato slices.

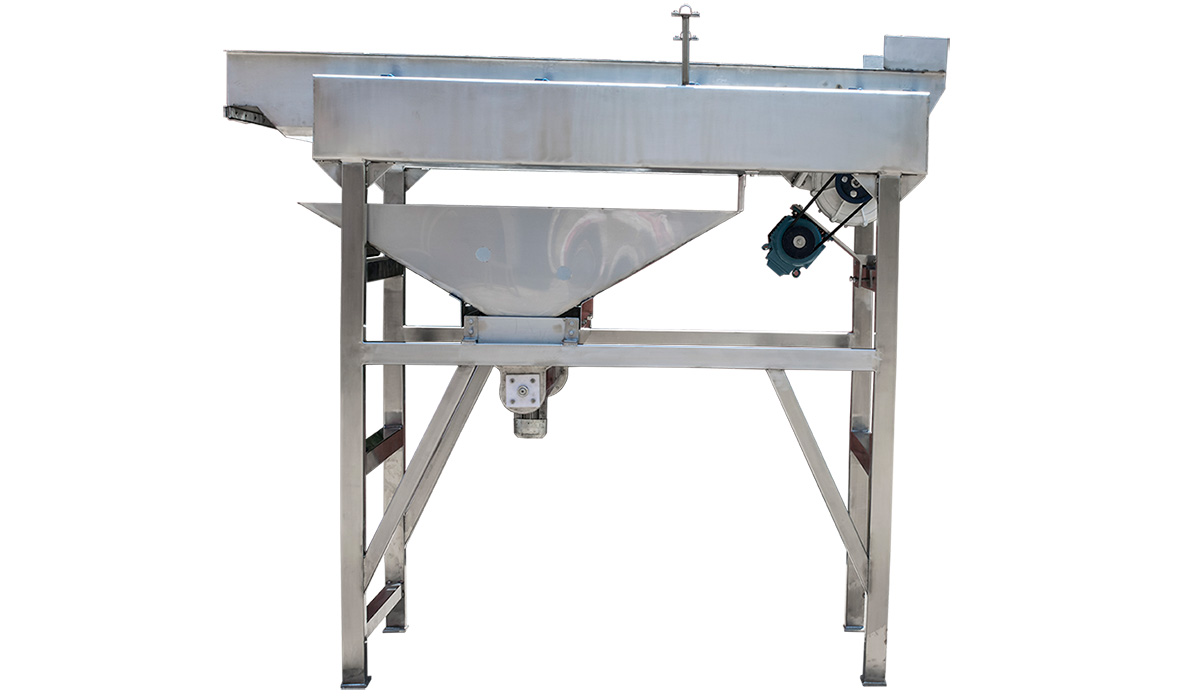

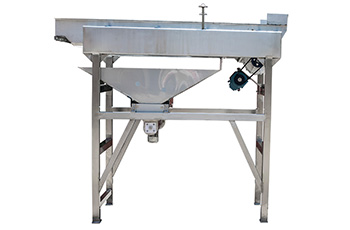

Vibratory Shaker
A vibratory shaking unit ensures elimination of small and broken slices. System complete with stainless steel water circulation pump, related pipeline etc.

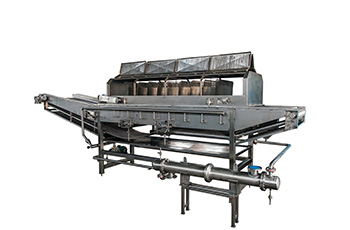

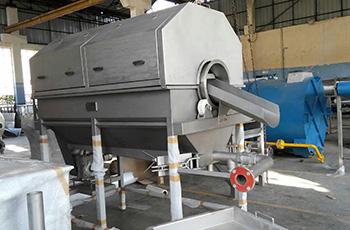

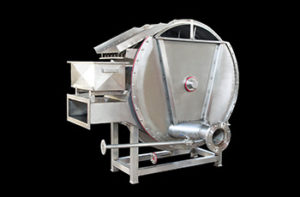

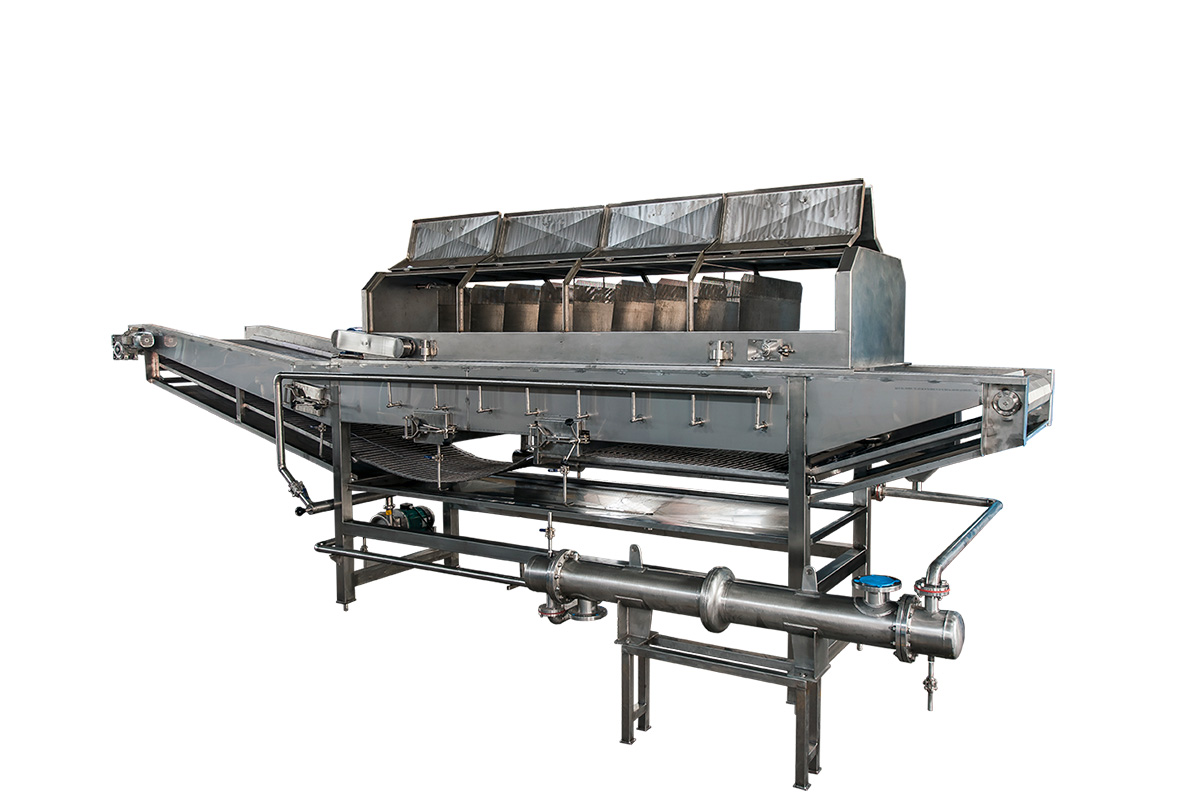

Drum Blancher
The blancher handles the product very gently to minimize damages and breakages. Accurate temperature control of the water is essential for achieving the right characteristics of the finished product. Even heat transfer is important to get an even product quality. It may be used for nominal blanching/ washing of chips in hot water.

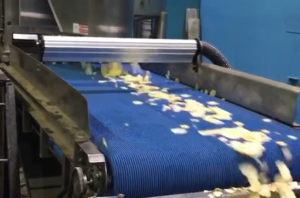

High Speed Belt with air knife system
The slices are fed to the fryer through High Speed Belt, which ensures distribution and separation of individual slices.
An Air Knife system finally removes surface water on chips, before they are fed to the fryer.

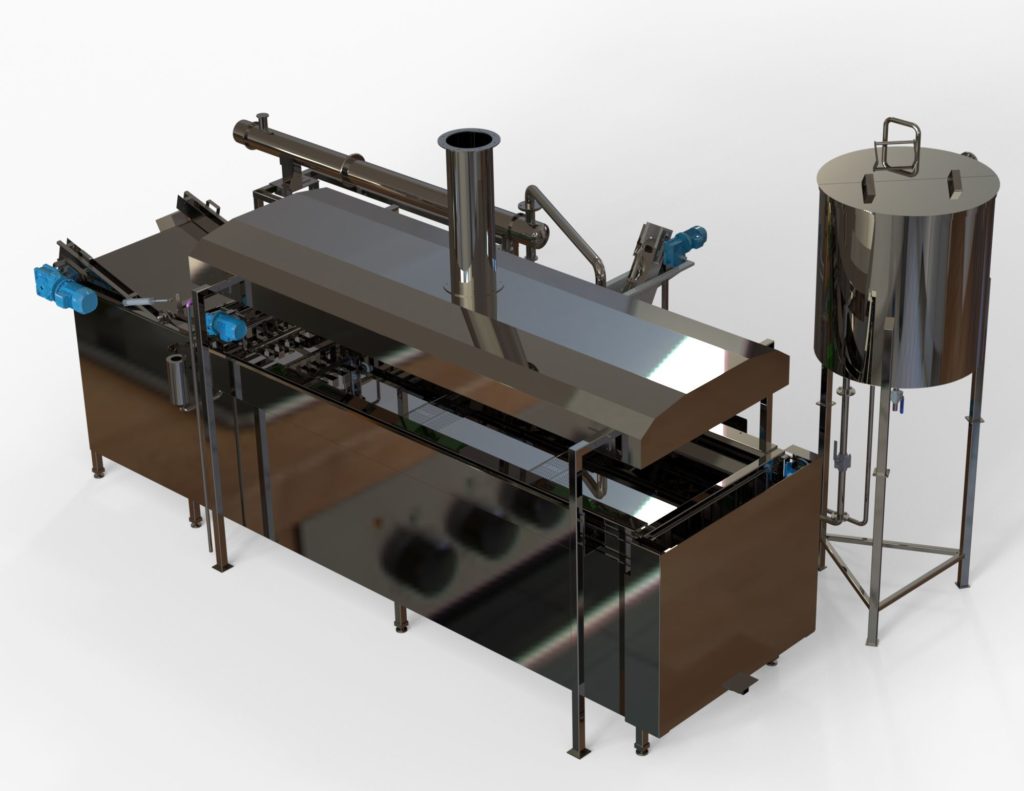

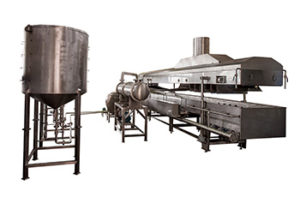

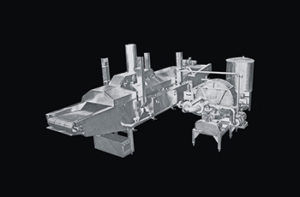

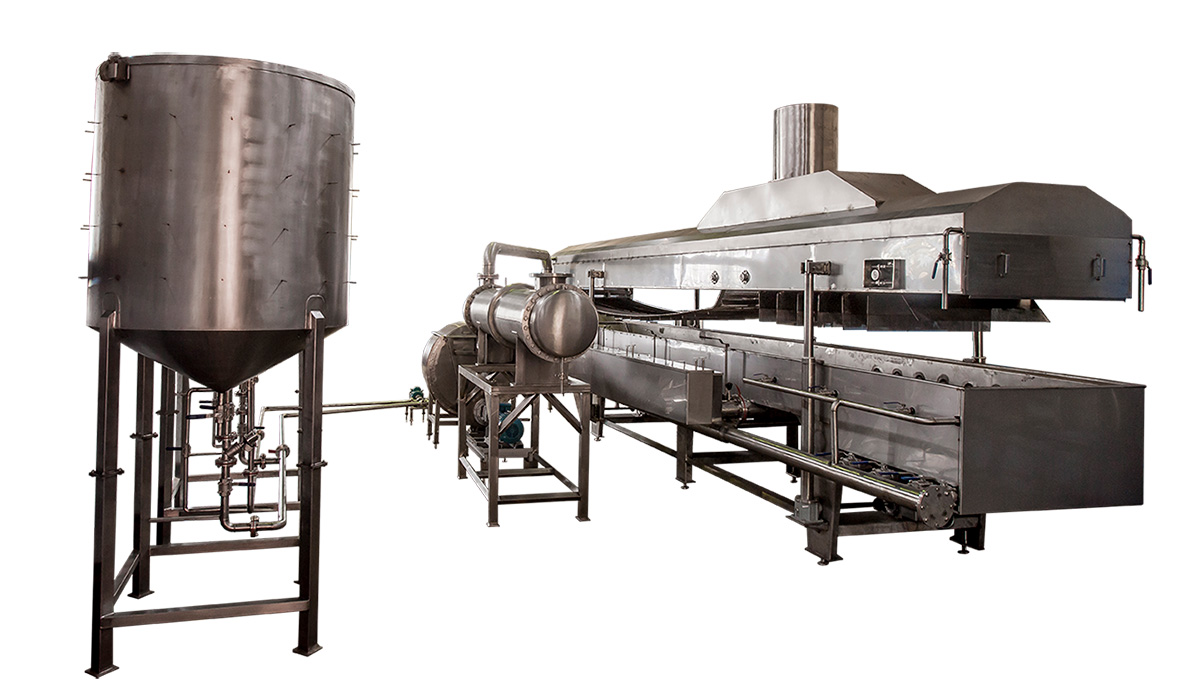

Fryer for Potato French Fries
Multi-flow frying System- for par-frying of raw potato sticks is given. Since oil pick up is very low, minimum oil is kept in circulation in frying system.
Multi-flow frying System
Comprising: –
- Continuous fryer
- Circulating pump unit
- Continuous Fat Filter

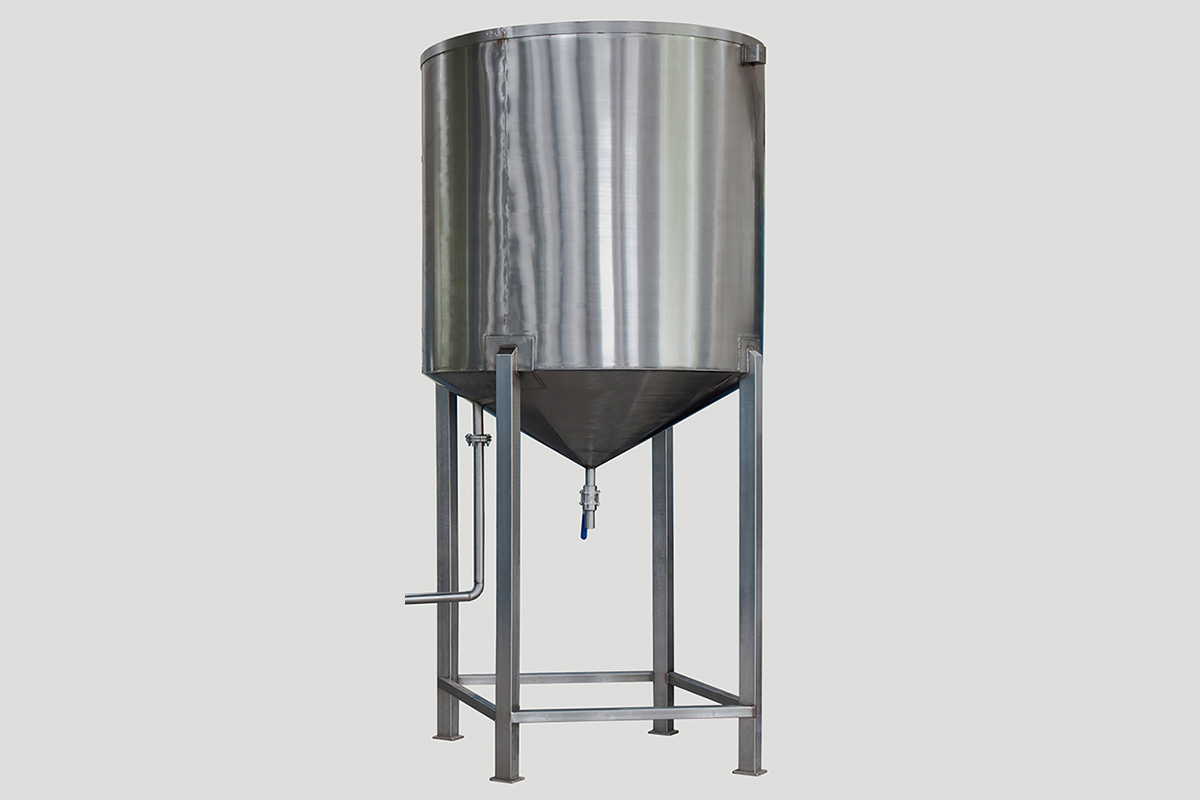

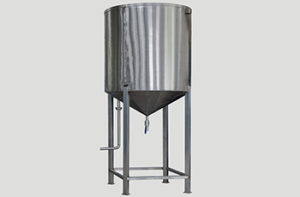

- Day tank with level control
- Automatic Temperature Controller
- Hood Lifting
- CIP(Cleaning in place system)
The pan is equipped with multiple fat inlets to ensure an even heat supply during the frying.
Under the return part, there is a collection system for the drops that may fall off the return part of the belt. These are connected to one point and from there they can be transported back to the system. The return part is completely integrated and there is no waste or dripping on the floor. The total fat volume is hereby reduced and the turnover value is low. This influences the possible storage time of the end product.
Special vapor hood design with drip-back security and outlet telescopic type. The vapor hood can easily be lifted by means of the screw lifting. The fryer is equipped with digital temperatures indicator and temperature regulator. Variable speed drive for frying time control.
For easy cleaning, a CIP (Cleaning in place) system is installed with spray heads and pipes in the top of the hood.
Oil Heat Exchanger can use hot thermic oil or steam as may be preferred by the customer.

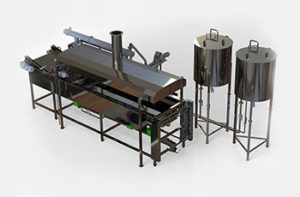

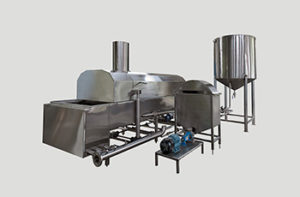

Pellet frying system with thermic fluid heating system
Capacity upto 1500 kg/hr
Designed to produce high quality pellets. Comprising of Continuous fryer, Mechanical Hood lifting system, Continuous fat filter, Automatic level control, Day tank, CIP etc.
The Pan is equipped with multiple inlets to ensure an even temperature and an even fat flow along the entire pan at the same time. The multiple outlets can be adjusted individually to obtain the optimal fat level in the pan.

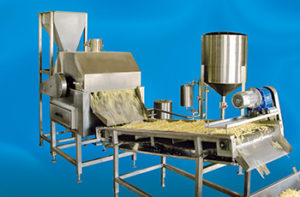

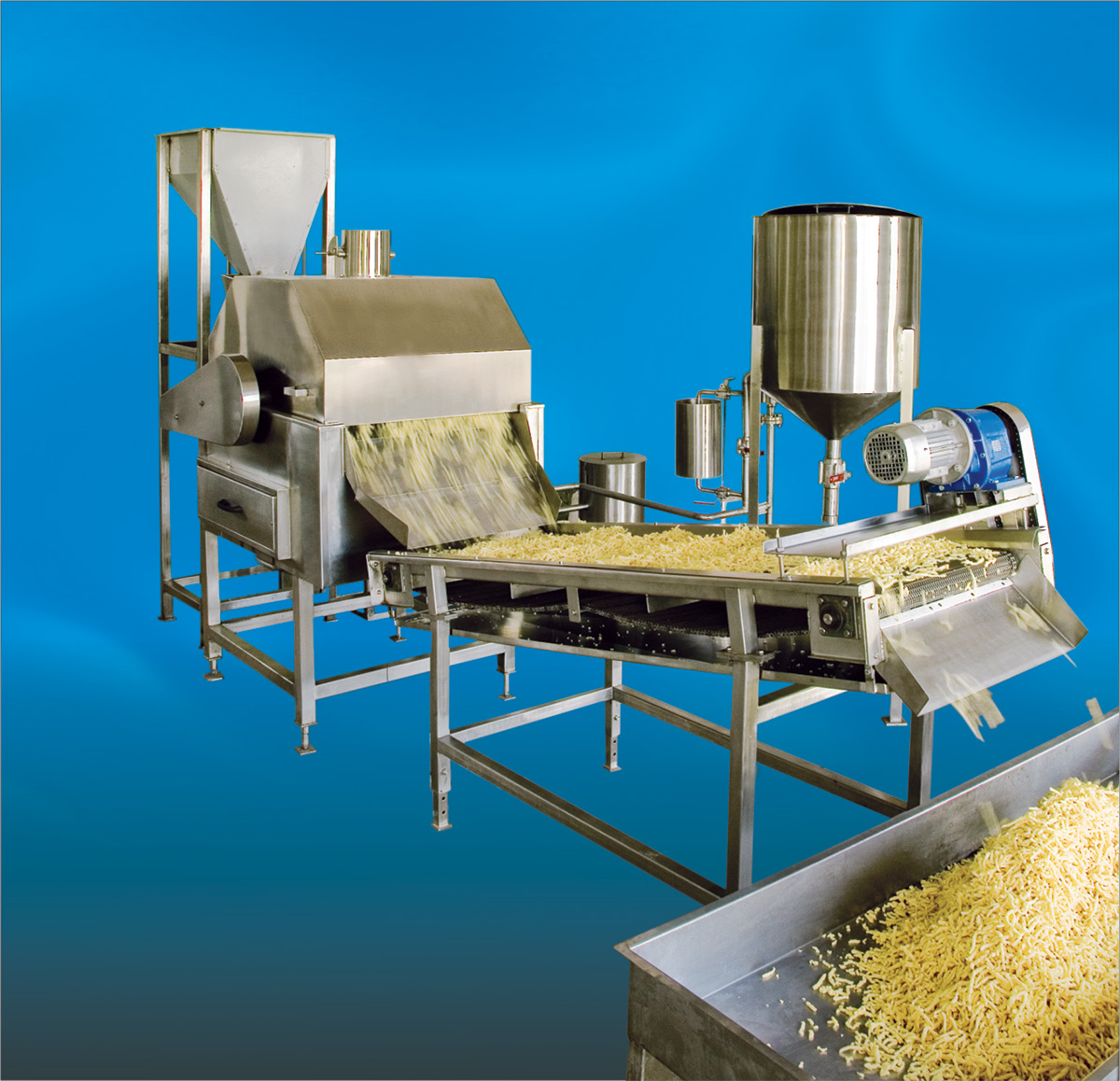

Pellet frying line

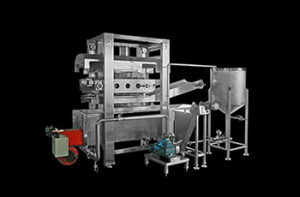

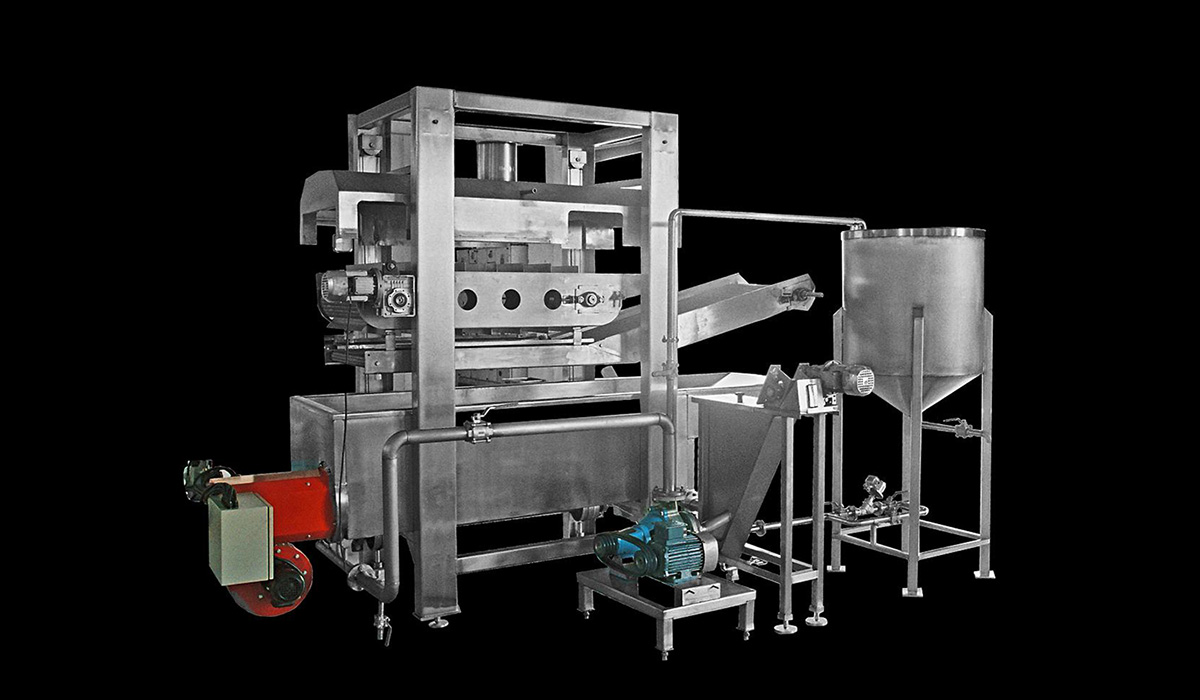

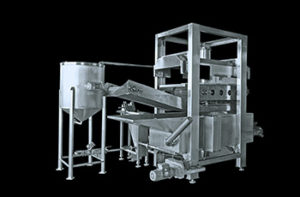

Direct Gas Fired Pallet Fryer
Designed to produce high quality Extruded snacks for direct gas fired frying system you no need of set up any boiler or heat exchangers you just plug in gas connection feed the oil in to pan and your fryer is ready to give you production . Comprising of Continuous fryer, Mechanical Hood lifting system, Continuous fat filter, Automatic level control, Day tank, CIP etc.
The Pan is equipped with multiple inlets to ensure an even temperature and an even fat flow along the entire pan at the same time.

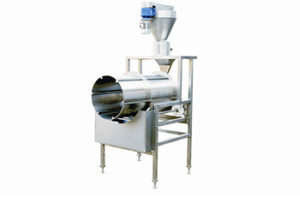

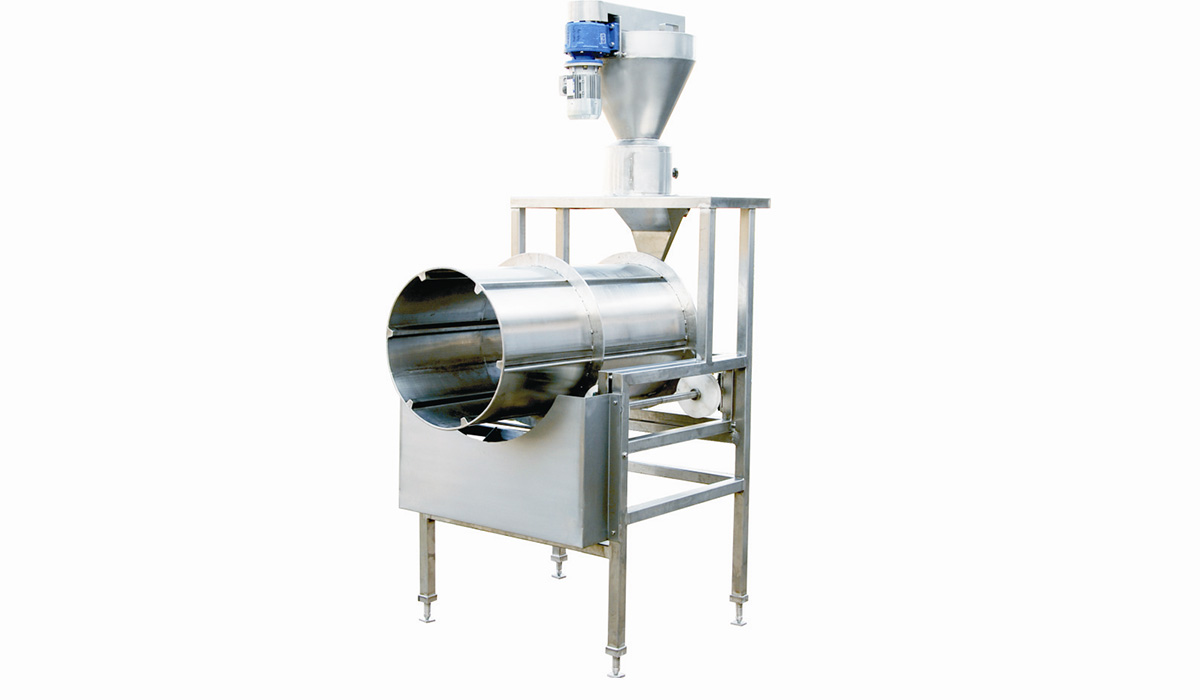

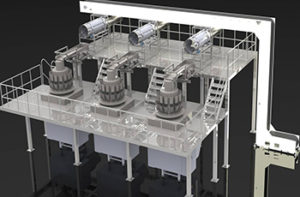

Multi Drum
That system help you to produce multiple flavouring chips with single process line .
Equipments for snack production line
Packaging
- Inclined Z conveyor
- To Elevate flavored products for packaging machines.
Cross Feeder
These cross feeders will be used for feeding of your product from Bucket Elevator onto the multihead Weigher. These are required to create a surge above the packaging machines so as not to starve them of material and get better output.
Multihead weigher – Yamato, Japan / China.
Yamato Data-weigh ALPHA Plus Series Weighers are versatile, cost effective, user friendly and designed for excellent sanitation to meet HACCP standards. Latest Color touch screen controller for easy operation. High performance weighing accuracy using computerized combination weighing method.
Model – Yamato ADW – A – 0314S
Number of weigh heads – 14 heads.
Target Volume – 3000 cc
Set consists of:
- 14 x1 Linear feeder
- 14 x1 Feed Bucket
- 14 x1 Weigh Bucket
- Collating Funnel & chute
- 10.4 “ Color RCU controller
- Collection Bucket
Winners bagmaker – INDIA
Vertical Form Fill Seal Packaging Machine.
Each machine can achieve a speed of 80-85 bags per minute on Snack food product of 15 gm- 25 gm. Unit weight.
Controlled By Most Advanced Motion CPU From SIEMENS: Germany.
6” 256 Colour HMI Touch Screen Panel From SIEMENS : Germany With Production Data In Various Formats.
Web Alignment Through Touch Screen For Perfect Vertical Sealing Alignment.
Standard Features of “WINNERS” Bagmaker :
- Intermittent Motion Profile
- Servo Controlled Film feed.
- Servo Controlled Jaw Seal Actuation
- Servo controlled Unwinder Action
- 6’ HMI Color Touch-Screen
- Quick Change Former Assembly
- Electronic Registration Control
- Full Safety Guarding and Interlocks
- Web tracking through Touch screen
Date Coder- Videojet Model 6210 , USA
Thermal Transfer Over printer offers a proven and cost-effective solution for users ready to migrate to a digital solution from a non-digital solution such as hot stamp or roller coders. The Videojet 6210 delivers maximum reliability and efficiency for marking variable, high resolution images on flexible packaging and labels — at an affordable price.
Metal detector
- S+S (Germany) Make Mtal Detector System having Model P Scan RP150 with
- Primus control unit
- 6 meter control cable
- Anti-static scanning pipe
- Suitable Mounting Bracket for Metal Detector
- Working Table with Hopper
Take-Out Conveyor with turn table
Take-out belt conveyor for easy removal of Pouch from bottom of bagmaker.
Support Platform
- A suitable Packaging platform to place Multihead Weigher &
- Distribution system Equipments of Packaging System .

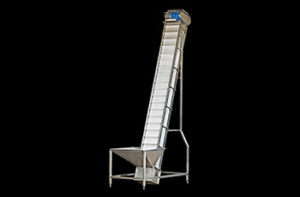

Inclined elevator
Inclined Elevator for regular and consistent flow of peeled potatoes to the Process Line. The Auger gently lift the Potatoes and transfer it to next equipment. The equipment is facilitated with a receiving Hopper.
Continuous Abrasive Peller
Potato peeling technology options are available. Continuous abrasive Peeler, Batch Peelers with computer controls. Steam peeling up to 10 ton/hr. of potatoes etc.
Continuous Peeler
Generally used for continuous Potato peeling technology options are available. Continuous abrasive Peeler, Batch Peelers with computer controls. Steam peeling up to 10 ton/hr.of potatoes etc.
our peeling of potatoes for Chip lines. The degree of peeling is accurately controlled by adjustable levels of abrasive rolls for optimum peeling results. Special roller design results in uniform peeling over the entire surface of potatoes. Central Auger carries Potatoes from one end to the other with speed adjustable to achieve the desired degree of Peeling.
S.S Hood & Hood Lift Assembly
Stainless Steel hood assembly complete with two belts, telescopic chimney etc. Hood is specially designed with “drip/back” security and evacuation pipe (chimney, height 1Mtr.) of telescopic type. Complete with valve and regulation equipment.
Integrated mechanical lift off system, lifts the complete hood assembly with belts for easy access for cleaning.
Automatic Oil Level Control
For automatic topping of oil level in the fryer. Including valve arrangement, transport pump and internal piping between the components.
Automatic Temperature Control
The frying temperature is controlled within a range of ± 1.5°C. The temperature at different places in the pan can also be noted.
Hot Oil Circulation System
Complete with S.S. Pump, stainless steel piping connecting fryer to heat exchanger, fat filter and day tank.
CIP
Automatic cleaning in place system installed between hood and belt in the fryer.
Complete including:
Nozzles of Stainless steel – Circulation Pump
Filter – Valves and Piping
Holding Belt
Covered outfeed for lifting the finished product from the frying oil. Variable speed drive for adjustment of the belt speed. Made of stainless steel and flanged to the fryer.
The specific construction of our out feed belt gives advantages with regard to the fat draining during the elevation from the fat bath. A warm closed atmosphere during the transport time is obtained. Dripped off fat goes back into the system.
Demister Pad for Chimney
To separate droplets in a stream of air, e.g oil and water droplets in the exhaust from the fryer. These droplets can easily be removed.
